外接天線

川旺科技也供應不同應用外接式型態，如外觀、場形、方向性等客製化

外接天線

• 客製化接頭形式與線纜長度
• 工作頻率範圍:GPS/Glonass/Beidou/Galileo/Inidium/WiFi/SiriusXM Radio

工作頻率: GPS/Glonass/Beidou/Iridium

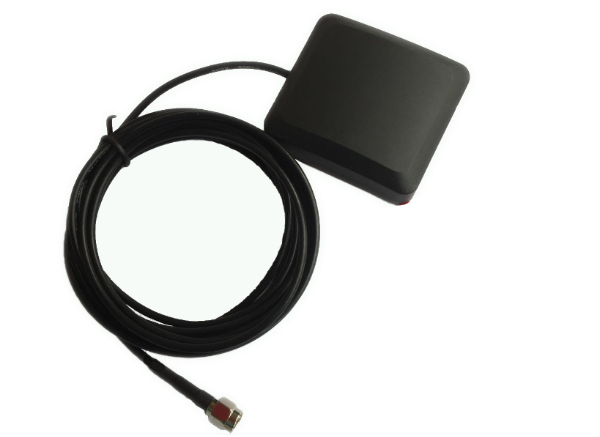

料號: G-PEXXX

• Working Frequency: GPS
• Frequency: 1575.42 MHz
• Impedance: 50Ω
• Polarization: RHCP
• VSWR: 1.5 max
• Bandwidth: >16 MHz
• Peak Gain : +5.0 dBic Typ.

工作頻率: GPS/Glonass/Beidou/Iridium

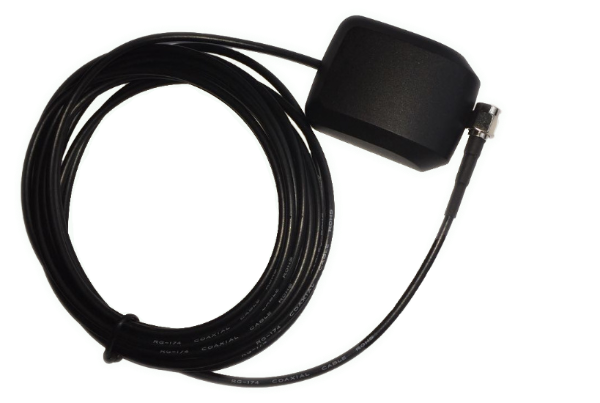

料號: O-PEXXX

• Working Frequency: Iridium
• Frequency: 161~1626 MHz
• Impedance: 50Ω
• Polarization: RHCP
• VSWR: 1.5 max
• Peak Gain : +5.0 dBic Typ.

工作頻率: GPS/Glonass/Beidou/Iridium

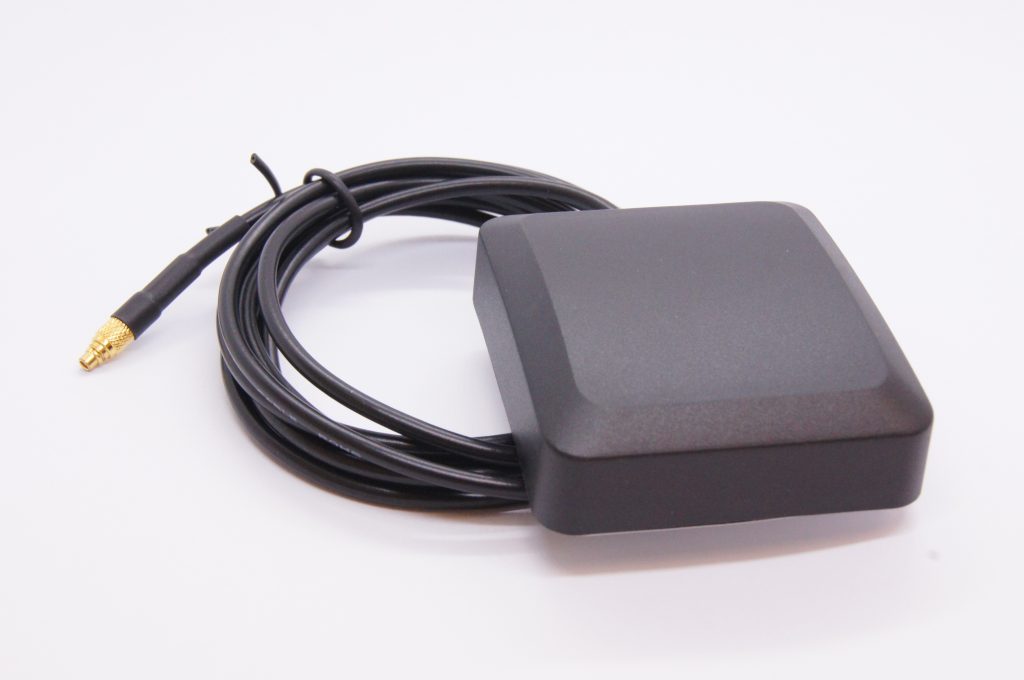

料號: GN-AEXXX

• Working Frequency: GPS/Glonass/Beidou
• Frequency: 1575.42 MHz
• Impedance: 50Ω
• Polarization: RHCP
• VSWR: 1.5 max
• Bandwidth: >25 MHz
• Peak Gain : +6.5 dBi Typ.
